MTC Series PTZ Video Conference Camera IP SDI Lecturer Tracking System Onvif / Pelco-D Supported

WINSAFE Technology Co.,LTD
Contact Now

MTC Series PTZ Video Conference Camera IP SDI Lecturer Tracking System Onvif / Pelco-D Supported

  • 1
  • 2
  • 3

Brand Name : WINSAFE

Model Number : MTC-A2001

Certification : CE / FCC / RoHS

Place of Origin : China

MOQ : 1piece

Payment Terms : L/C, T/T, Western Union, Paypal

Packaging Details : Neutral packing

Image Sensor : 1/2.8" Exmor CMOS

Pixel : 2.14MP

Optical zoom : 20X

Digital zoom : 12X

Min. Illumination : 0.5Lux(Color), 0.1Lux(B/W)

Protocol : PELCO-D,VISCA

Max Image : 1920x1080

Video Compression : H.264

Contact Now

MTC Series White / Black IP+SDI Lecturer Tracking System With Onvif / Pelco-D / Visca Supported

Feature

※ H.264 video compression,support dual stream

※ 2.14MP,1/2.8" Exmor CMOS

※ Compatible with ONVIF,RTSP,RTMP protocols

※ Configuration of camera is realized by network

※ Come with face and motion detection tracking technology,orecisely lock & track lecturer

※ Standalone tracking,there is no need to have extra devies/sensors
※ When tracking,the camera image is antomatically adaptive to Lecturer's height

※ There is no limit to tracking zone,the camera can track lecturer all around the classroom

※ Smart tracking performance like auto zoom,tilt motion,free of interfering objects/lights

※ Support stand and ceiling mount

Specification

Model No. MTC-A2001
Tracking Camera
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Lens f =4.7mm -94.0mm;F1.6 - F3.5
Zoom Optical: 20X, Digital: 12X
Field of View 59.5° - 2.9°
Focus Auto, Manual, One push
Min. Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
Gain Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual,
Exposure Auto, Manual, Shutter Priority, Iris Priority
S/N Radio Above 50dB
Full view camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixel 2.14MP
White Balance Manual
Exposure Auto
Field of View Horizontal:78°;Vertical:44°
Lens 2.4mm
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +90°/s
Preset Number 256
Comm Interface RS-232
Protocol PELCO-D,VISCA
Network
Max Image Size 1920x1080
Frame Rate HD:50Hz:25fps(1920x1080) 50fps(1280x720); 60Hz:30fps(1920x1080) ,60fps(1280x720)
Video Compression H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Video
Video Output HD-SDI
Video format HD:1080P/60,1080P/50,1080P/30,1080P/25,1080i/60,1080i/50,720p/60,720p/50
Ethernet RJ45,100M
General
Power Supply DC12V
Power Consumption <20W
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 160mm x 220mm
Color

White

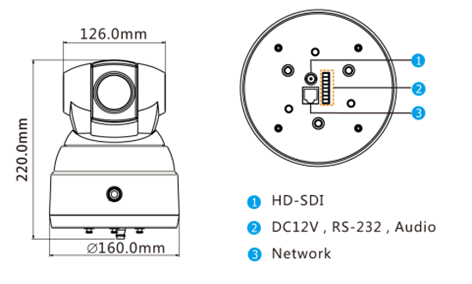

Dimension Drawing

MTC Series PTZ Video Conference Camera IP SDI Lecturer Tracking System Onvif / Pelco-D Supported

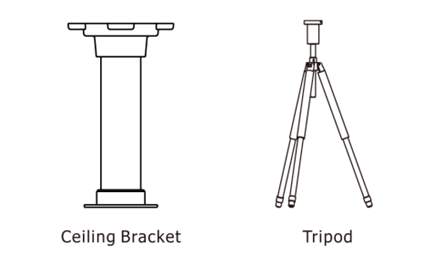

Installation

MTC Series PTZ Video Conference Camera IP SDI Lecturer Tracking System Onvif / Pelco-D Supported
