12X Optical Zoom Conference Room Video Camera Skype / Zoom / Bluejeans Supported

WINSAFE Technology Co.,LTD
Contact Now

12X Optical Zoom Conference Room Video Camera Skype / Zoom / Bluejeans Supported

  • 1
  • 2

Brand Name : WINSAFE

Model Number : AMC-E200TV2

Certification : CE,FCC

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs/month

Delivery Time : 3-5 work days

Packaging Details : Neutral Packing

Digital Zoom : 12X

OSD : Yes

Optical Zoom : 12X

Image Flip : Yes

RJ45 : Support

UVC Protocol : Support

RS485 : Support

Contact Now

Grey 12X Optical Zoom SDI & DVI HD Video Conferencing Camera With Skype / Zoom / Bluejeans Supported

Features

※ H.265 video compression,dual stream

3G-SDI / DVI-D / USB3.0 supported
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain
※ Special mechanical PTZ driving system,ensure precise positioning

Technical Specification

Model No. AMC-E200TV2
Tracking Camera
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Focal 3.9mm - 46.8mm
IRIS F1.6 - F2.8
Zoom Optical: 12X, Digital: 12X
Field of View 72.5° - 6.3°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
S/N Ratio Above 50dB
White Balance Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris priority
Full View Camera
Image Sensor 1/2.8" CMOS
Effective Pixel 2.14MP
White Balance Auto
Exposure Auto
Lens Manual Fixed Focus
Field of View Horizontal: 86°; Vertical: 52°
Focus 2.4mm
Pan & Tilt
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +90°/s
Preset Number 256
Control Interface RS-232/RS-485/USB3.0
Ethernet RJ45, 100M
Control Protocol PELCO-D / VISCA / UVC
Network
Image Resolution 1920 x 1080 @ 60fps
Video Compression H.264
Audio Compression AAC
Protocol RTMP / RTSP / TCP / UDP / ONVIF
Dual stream Support
Simultaneous Users Up to 10 users
Video Interface 3G-SDI / DVI-D / USB3.0
Video Format 1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50
General
Power Supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 263mm
Weight 1.2KG
Color Grey

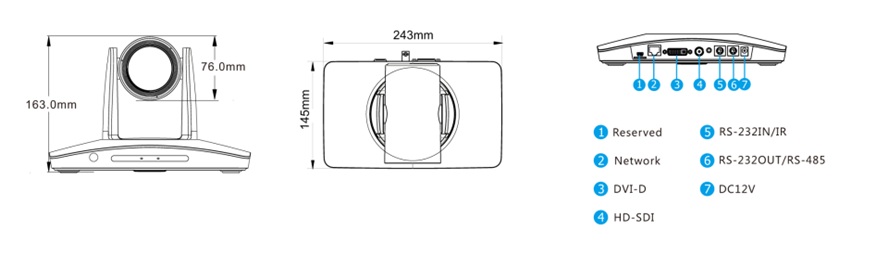

Dimensional Drawing

12X Optical Zoom Conference Room Video Camera Skype / Zoom / Bluejeans Supported

Video Link

https://youtu.be/Iu-CT4_JW1w



Application

12X Optical Zoom Conference Room Video Camera Skype / Zoom / Bluejeans Supported
